DRV90 Direct-connected 90 m3/h Oil Lubricated Double -stage Vacuum Pump Low Noise

Brand Name : BSC

Model Number : DRV90

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 500 sets per month

Delivery Time : 5-10 days

Packaging Details : wooden box

Surface : Painting

Color : Army Green

Speed : 90 m³/h

Ultimate vacuum : 0.5 Pa

Noise level : 65 dB(A)

Product Name : vane type vacuum pump

Motor Power : 2.2kW

Contact Now

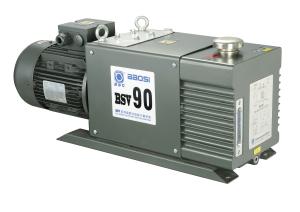

90m³/h Oil Lubricated Direct Drive Two-Stage Rotary Vane Vacuum Pump DRV90 in Green Color

The direct-driven rotary vane vacuum pump is one of the main vacuum equipment pumping gas from the sealed container. It not only can be used alone but also can be a backing pump of booster pump, diffusion pump, turbo molecular pump, and titanium pump.

Technical Data

		Units	DRV90
Pumping Rate	50 Hz	m³h^-1 / Lmin^-1	90/1500
	60 Hz		108/1800
Ultimate Vacuum	Without gas ballast	Pa/ mbar	0.5/5×10^-3
	With gas ballast		4/4×10^-2
Inlet	KF40
Outlet	KF40
Oil Needs		liter	4.5~6.1
Noise Level		dB	65

Performance Curve

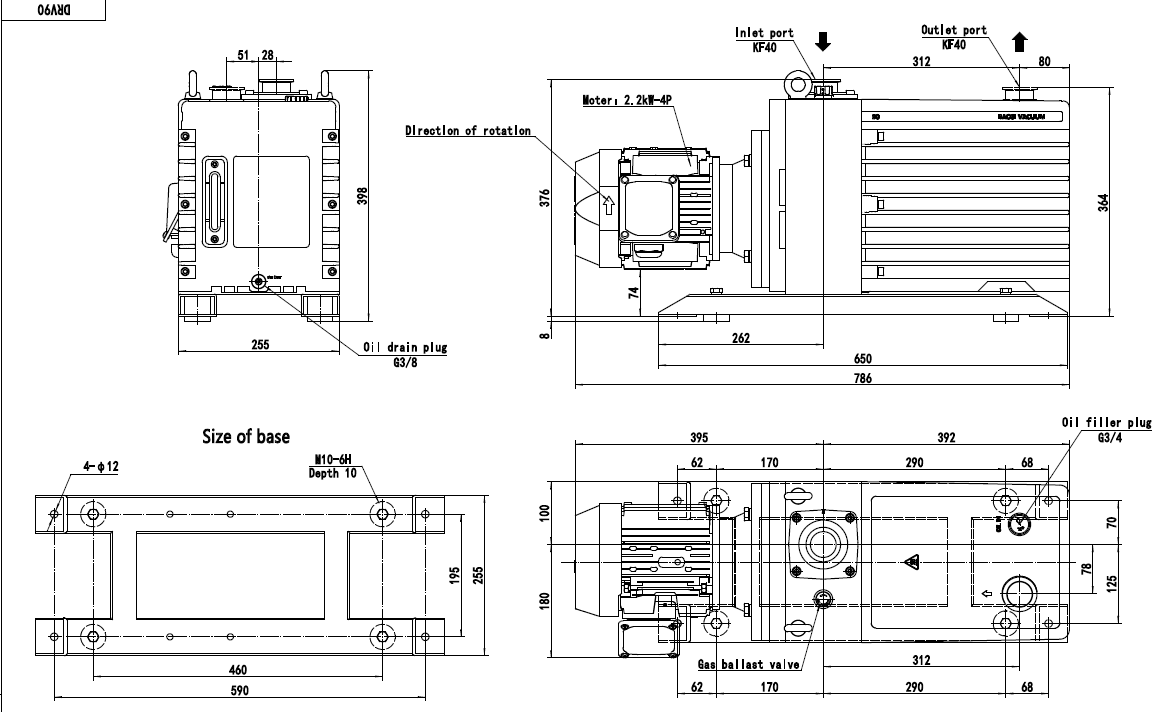

Dimensions

DRV90

Application

Vacuum metallurgy

Thin-film coating

Freeze drying
